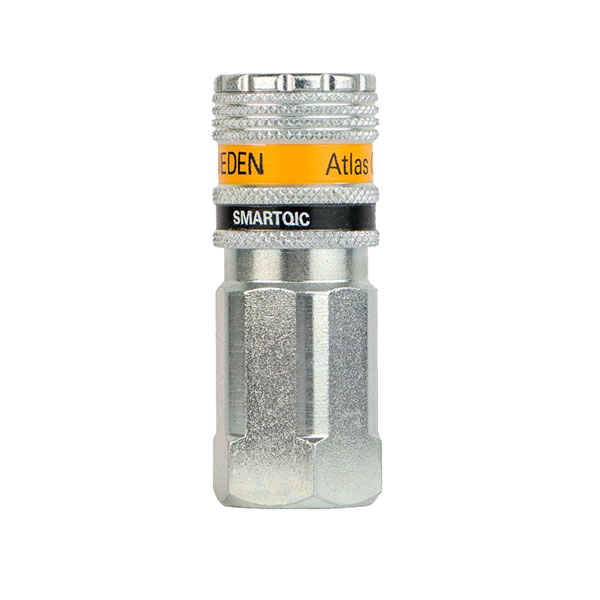

SmartQIC安全联轴器

所属品牌：阿特拉斯·科普柯Atlas Copco

产品型号：SmartQIC/NIP

SmartQIC联轴器是一款具有高气流性能的单手操作联轴器。它适用于多种类型的应用和气动工具；如螺丝刀、组装工具、钻机和打磨机。它坚固耐用，由镀锌钢/黄铜制成。采用独特的安全通风设计，在其能够断开之前将空气排出，从而大限度地降低操作员受伤的风险。

点我询价

线上咨询

商品描述
商品询价热度

Atlas阿特拉斯SmartQIC联轴器

Atlas SmartQIC联轴器

阿特拉斯SmartQIC联轴器

连接力小

更长的寿命

大流量联轴器

更低的噪音水平

可靠性高，压降低

经久耐用，操作简单

带排气接头的安全功能

符合人体工学，采用无泄漏设计

有效的减少软管缠绕和对操作员的伤害

符合 EN 983 / ISO 4414 的安全特性

Atlas SmartQIC联轴器各型号技术参数

型号	ID	连接	螺纹尺寸	工作压力	工作温度	工作温度	流量 (0.5 bar ΔP)	流量 (7 psi ΔP)	软管尺寸
SMARTQIC-15US-M10-NPT	4221004003	Male	3/8 NPT	232 psi	-4.0 °F	+212.0 °F	69 l/s	146 cfm
NIP-10US-F15	4221005111	Female	1/2 BSP	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
NIP-10US-F10	4221005110	Female	3/8 BSP	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
SMARTQIC-10US-F15-NPT	4221005009	Female	1/2 NPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
NIP-10A-M06	4221006104	Male	1/4 BSPT	232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm
SMARTQIC-10A-F06	4221006006	Female	1/4 BSPT	232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm
SMARTQIC-10US-H10	4221005000	Hose		232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm	3/2 inch
NIP-10US-M10	4221005104	Male	3/8 BSPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
NIP-15US-H10	4221004100	Hose		232 psi	-4.0 °F	+212.0 °F	69 l/s	147 cfm	3/8 inch
SMARTQIC-10US-H13	4221005001	Hose		232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm	1/2 inch
SMARTQIC-10A-H08	4221006001	Hose		232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm	9/32 inch
SMARTQIC-10A-M10	4221006004	Male	3/8 BSPT	232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm
NIP-10US-H10	4221005101	Hose		232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm	3/8 inch
NIP-10US-M10-NPT	4221005107	Male	3/8 NPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
NIP-10US-H13	4221005102	Hose		232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm	1/2 inch
NIP-10A-M15	4221006106	Male	1/2 BSPT	232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm
NIP-10A-F10	4221006108	Female	3/8 BSPT	232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm
NIP-15US-M15-NPT	4221004105	Male	1/2 NPT	232 psi	-4.0 °F	+212.0 °F	69 l/s	147 cfm
NIP-10A-H06	4221006100	Hose		232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm	1/4 inch
SMARTQIC-10A-M15	4221006005	Male	1/2 BSPT	232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm
SMARTQIC-15US-F20-NPT	4221004008	Female	3/4 NPT	232 psi	-4.0 °F	+212.0 °F	69 l/s	146 cfm
NIP-10A-F06	4221006107	Female	1/4 BSPT	232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm
SMARTQIC-10US-F10-NPT	4221005008	Female	3/8 NPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
NIP-10A-H13	4221006103	Hose		232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm	1/2 inch
SMARTQIC-15US-F15-NPT	4221004007	Female	1/2 NPT	232 psi	-4.0 °F	+212.0 °F	69 l/s	146 cfm
SMARTQIC-10US-F10	4221005006	Female	3/8 BSP	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
NIP-10US-F06	4221005109	Female	1/4 BSP	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
SMARTQIC-15US-M15-NPT	4221004004	Male	1/2 NPT	232 psi	-4.0 °F	+212.0 °F	69 l/s	146 cfm
NIP-15US-F10-NPT	4221004107	Female	3/8 NPT	232 psi	-4.0 °F	+212.0 °F	69 l/s	147 cfm
NIP-10US-M06	4221005103	Male	1/4 BSPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
NIP-15US-F20-NPT	4221004109	Female	3/4 NPT	232 psi	-4.0 °F	+212.0 °F	69 l/s	147 cfm
SMARTQIC-10A-H10	4221006002	Hose		232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm	3/8 inch
NIP-15US-H20	4221004103	Hose		232 psi	-4.0 °F	+212.0 °F	69 l/s	147 cfm	3/4 inch
SMARTQIC-10US-M15	4221005003	Male	1/2 BSPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
SMARTQIC-15US-M20-NPT	4221004005	Male	3/4 NPT	232 psi	-4.0 °F	+212.0 °F	69 l/s	146 cfm
SMARTQIC-15US-H20	4221004002	Hose		232 psi	-4.0 °F	+212.0 °F	69 l/s	146 cfm	3/4 inch
SMARTQIC-10US-F15	4221005007	Female	1/2 BSP	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
SMARTQIC-10A-F15	4221006008	Female	1/2 BSPT	232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm
NIP-10A-H10	4221006102	Hose		232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm	3/8 inch
NIP-15US-M10-NPT	4221004104	Male	3/8 NPT	232 psi	-4.0 °F	+212.0 °F	69 l/s	147 cfm
NIP-15US-F15-NPT	4221004108	Female	1/2 NPT	232 psi	-4.0 °F	+212.0 °F	69 l/s	147 cfm
SMARTQIC-10US-M10-NPT	4221005004	Male	3/8 BSPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
SMARTQIC-10A-F10	4221006007	Female	3/8 BSPT	232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm
NIP-10US-M15	4221005105	Male	1/2 BSPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
NIP-10A-H08	4221006101	Hose		232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm	9/32 inch
SMARTQIC-15US-F10-NPT	4221004006	Female	3/8 NPT	232 psi	-4.0 °F	+212.0 °F	69 l/s	146 cfm
NIP-10US-F06-NPT	4221005112	Female	1/4 NPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
NIP-10A-F15	4221006109	Female	1/2 BSPT	232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm
NIP-10US-F10-NPT	4221005113	Female	3/8 NPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
SMARTQIC-10A-H06	4221006000	Hose		232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm	1/4 inch
SMARTQIC-10US-M10	4221005002	Male	3/8 BSPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
NIP-15US-M20-NPT	4221004106	Male	3/4 NPT	232 psi	-4.0 °F	+212.0 °F	69 l/s	147 cfm
SMARTQIC-10A-M06	4221006003	Male	1/4 BSPT	232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm
NIP-10A-M10	4221006105	Male	3/8 BSPT	232 psi	-4.0 °F	+212.0 °F	33 l/s	70 cfm
NIP-10US-M15-NPT	4221005108	Male	1/2 NPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
SMARTQIC-10US-M15-NPT	4221005005	Male	1/2 BSPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
SMARTQIC-15US-H13	4221004000	Hose		232 psi	-4.0 °F	+212.0 °F	69 l/s	146 cfm	1/2 inch
NIP-10US-H08	4221005100	Hose		232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm	5/16 inch
NIP-15US-H13	4221004101	Hose		232 psi	-4.0 °F	+212.0 °F	69 l/s	147 cfm	1/2 inch
NIP-10US-F15-NPT	4221005114	Female	1/2 NPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
NIP-10US-M06-NPT	4221005106	Male	1/4 NPT	232 psi	-4.0 °F	+212.0 °F	42 l/s	90 cfm
